Description

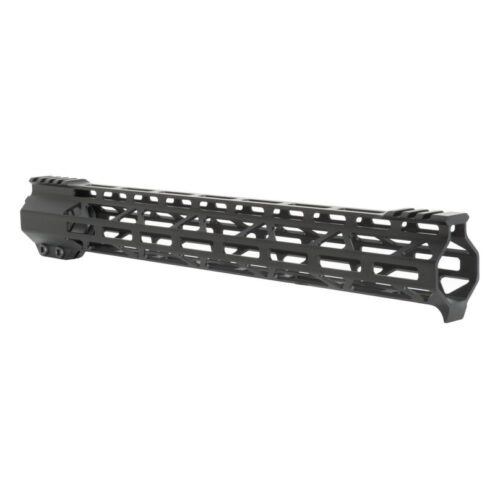

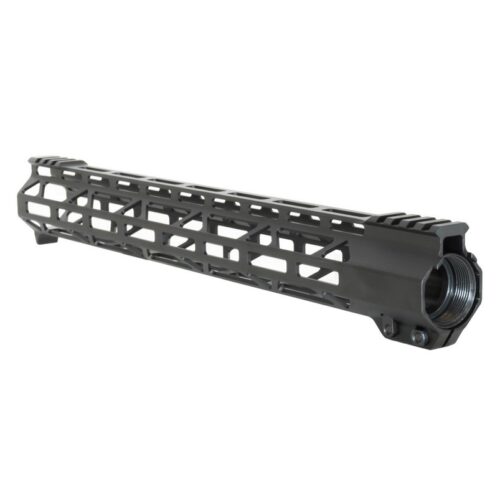

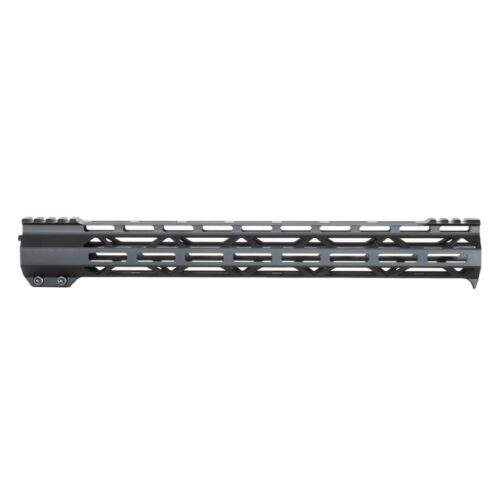

15″ AR15 Clamp Style HYBRID Cut Top Rail MLOK M-LOK Free Float Handguard with Mini Hand Stop Top Rail 5.56 .223 AR-15
Update your precision fighting AR with this light weight (9.8 oz ) handguard system. Heavy Duty and Free Float design helps with accuracy. Full length rail is a single piece design which can not accommodate an end cap. Aggressive CNC machined MLOK design allows for attachments to be placed at the 3/6/9 o-clock positions. On top, there are fixed picatinny rails which are located at the beginning and end of the handguard. In between are M Lock slots. This saves weight while allowing flexibility. Great for attaching more rails, hand stops, sling mounts, light switch panels and any other MLOK compatible accessories! Integrated micro handstop located at the muzzle end. Hard Coat Anodized Black finish. The handguard is friction fitted, clamped on to a steel barrel nut, which is held in place by hex screws. The screws have individual nuts so there is no stripping the threads! Also features anti rotation tabs! Fits on any 556 223 setup with a mil-spec barrel mount, including airsoft, BB and pellet systems.
Requires micro low profile gas block! (Not included)
Features:
- Fits AR15 uppers
- One Piece Free Float High Quality Construction
- Hybrid Design with Flat Top Picatinny Rails At Beginning and End
- MLOK M-LOK CNC Cuts Allow Full Spectrum Installation
- Integrated Front Mini Handstop
- Steel Barrel Nut
- Anti-Rotation Tabs
- Anodized Black Finish
- Longest Length: 15.0 inches
- Outside Width (MLOK Areas) : 1.50 inches
- Outside Width (Rail Areas) : 2.10 inches
- Inside Width: 1.33 inches
- Outside Height (MLOK Areas): 1.83 inches
- Outside Height (Rail Areas): 1.93 inches
- Wall Thickness: 0.08 inches
- Weight (Including barrel and screws only): 9.8 oz
- 2 Barrel Nut Screw Holes for a Tight and Precise Fit
Includes:
- 1 x 15″ A15 Handguard
- 2 x Barrel Nut Screws/nuts
- 1 x Barrel Nut
