7″ Inch AR15 Pistol Clamp Lightweight Slim Keymod Free Float Handguard – Pentagon Cut


Out of stock

Notify Me When Back In Stock

SKU: SVO-556-7-KEY-PENT Category: Tags: , , , ,

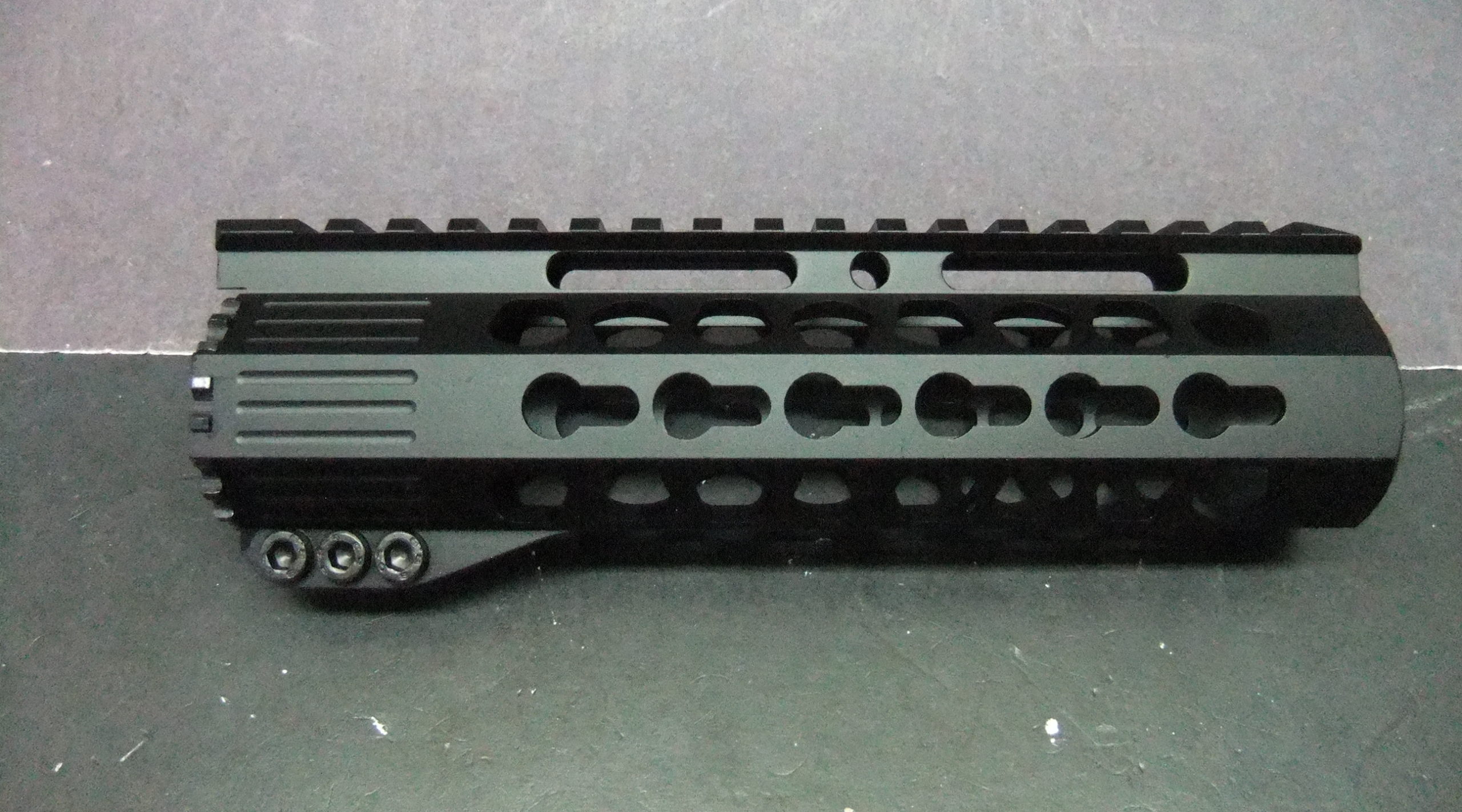

7″ Inch AR15 Pistol Clamp Ultra Light Weight Slim Key mod Anodized Free Float Handguard

Lighten your AR15 Pistol setup (only 6 5/8 oz!!) and show off to your fellow shooters with this  Ultra Light Weight Slim Keymod Anodized Black Free Float Hand Guard Grip. The anodized 7 inch actual length is sure to amaze your friends! Free floating forerail design helps with accuracy while aggressive CNC cuts feature an ultra light weight design. This is a single piece foregrip that is a slim diameter with no end cap holes. Key mod design allows for rail or keymod accessories to be placed at the 3/6/9 o-clock positions. Great for attaching hand stops, handguards, picatinny rails or light switch panels! Comes with 2 x picatinny rails. Handguard is a clamp style, friction fitted (with cam/notch lock), on to the barrel nut and is held in place by 3 hex screws. Fits on any 223 556 setup with a mil-spec barrel mount, including airsoft, BB and pellet systems.

Requires micro low profile gas block! (Not included – Click Here for our list of micro gas blocks)


  • One Piece Free Float High Quality 6061 T6 Aluminum Construction
  • Flat top, Marked Picatinny Rail, extended for monolithic look
  • Keymod CNC cuts allow for various installation preferences
  • Lightweight Steel Barrel Nut
  • Length: 7  inches top rail
  • Outside Width: 1 15/32 Inches *
  • Outside Height (Including top rail): 1 27/32 inches *
  • Inside Diameter: 1 1/4 inches
  • Ultra Light Weight (Including barrel nut, main screws): 6 5/8 oz
  • Three Barrel Nut Screw Holes in 6 o’clock Position for Tight and Precise Fit
  • Barrel Nut Cam/Notch ensures tight and non moving fit.


  • 1 x 7″ Inch AR15 Ultra Light Weight Slim Keymod Anodized Free Float Handguard
  • 1 x Barrel Nut
  • 3 x Barrel Nut Screws
  • 1 x Barrel Nut Screw Allen Hex Wrench
  • 2 x Timing Shims
  • 2 x  5 Slot Keymod Rail
  • 6 x Rail Screws
  • 6 x Rail Bolts
  • 1 x Rail Screw Hex Tool

*Measurement taken with a tape measure to best estimate. I do not have a micrometer.


Additional information

Weight 0.75 lbs
